🏷️ Asset Tagging

This guide explains how to manage asset tags within the system. Asset tags help categorize and identify resources efficiently. Asset tags can be applied to the following component

  • CDN Server
  • DNS Server

The Asset Tag settings can be viewing at the following Section

Navigation Path:
Home > Asset > Tag

In Order to assign an asset tag to certain resources, the asset key value pair needs to be pre-configured on the section above.


πŸ”Ž View & Create Tags

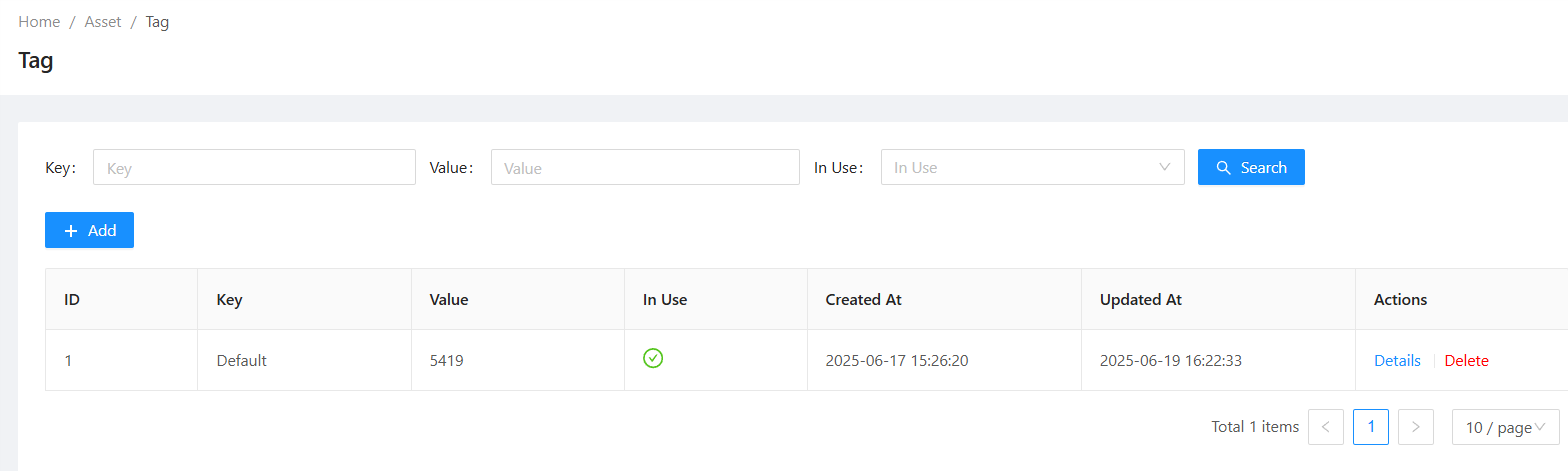

  1. Navigate to Home > Asset > Tag

    Note

    • The "In Use" icon (green checkmark) indicates active tags.
    • Tags can be edited or deleted by clicking Details or Delete in the Actions column

    Pic

  2. On the Tag page, click the blue + Add button.

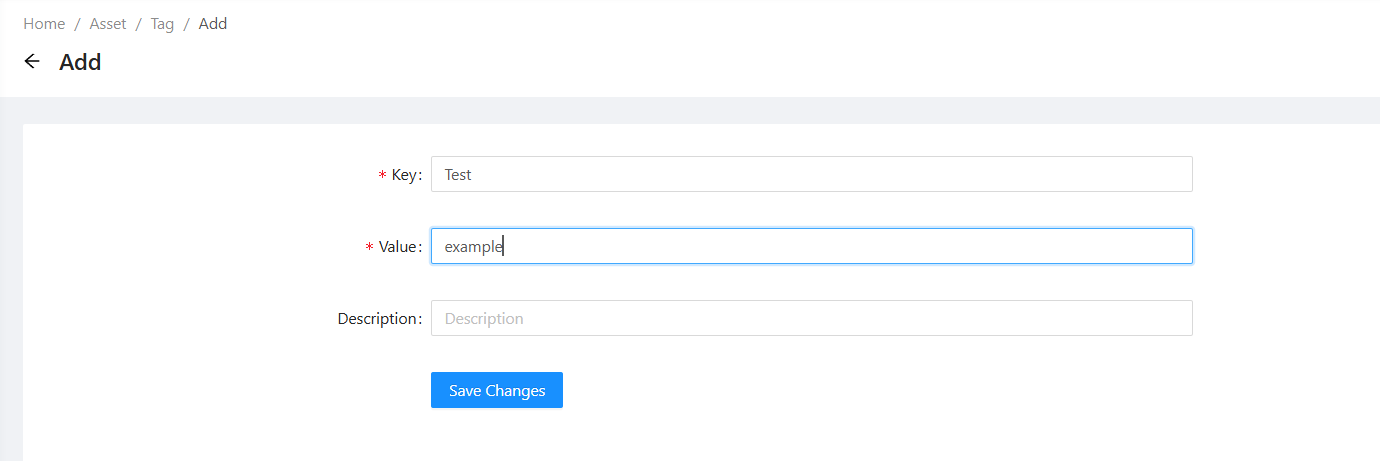

  3. Fill in the required fields: Pic

    Field Description
    Key A short name or label for the tag (e.g., Test).
    Value The value corresponding to the tag (e.g., example).
    Description (optional) Add a description to explain the purpose of the tag.

  4. Click Save Changes to add the new tag Option.


πŸ”– Assign Asset Tag to Server

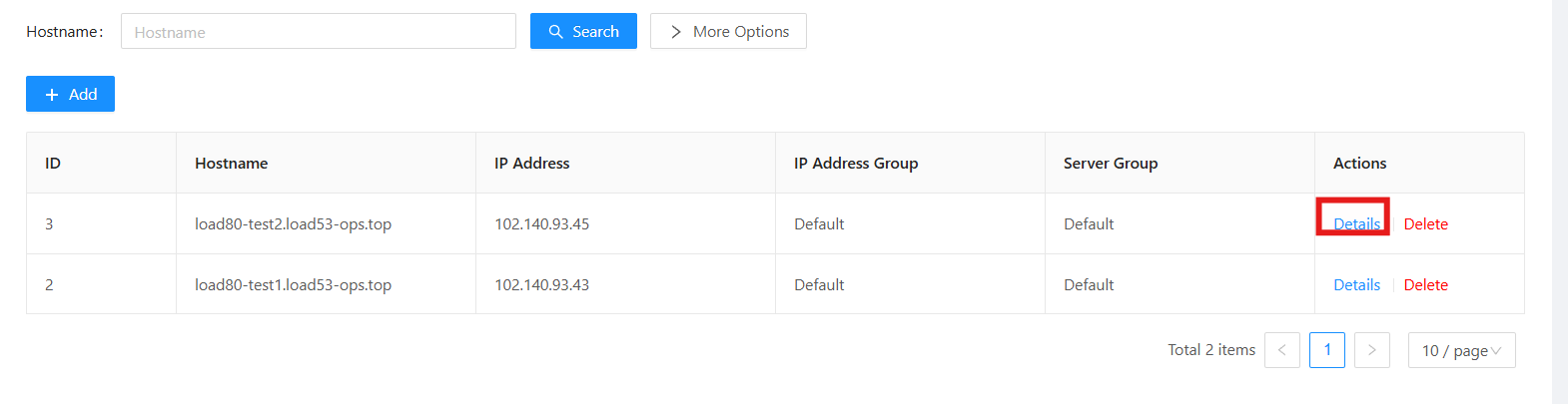

  1. Go to Home > CDN > Server or Home > DNS > Server and click on Server Detail Pic

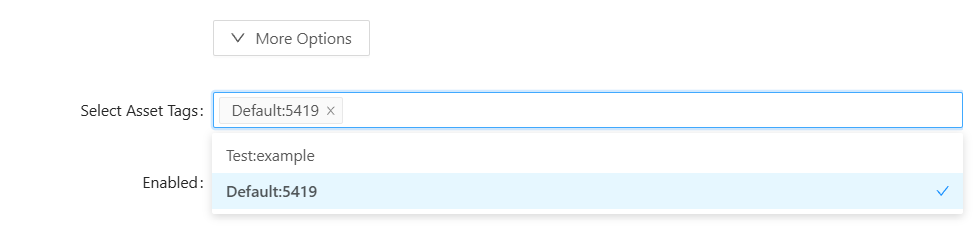

  2. Scroll Down and click on More Options. Then, select the desired Tag to be added to the Server From dropdown menu. Pic

  3. You can also add in extra configuration such as Asset Tag, Server Location,etc. Below Shows the available config.

    Question

    The Country Label in CDN Server Defination is NOT for GeoIP Based Traffic control. Instead, it only act as a reosource tag for logging and management purpose.

    Pic

    Field Label Description
    Select Asset Tags Select from dropdown list to assign predefined Tag Value
    Enabled Toggle switch to enable or disable the Server.
    Debug Mode Toggle switch to activate debug mode.
    Country Dropdown to select the country
    State Input field to enter the state or province.
    City Input field to specify the city.
    Longitude Input field for the geographic longitude
    Latitude Input field for the geographic latitude
    Description Text field to provide additional details


  4. After that, Click on Save Changes, and the settings will be applied.
